UVVM Assertions (BETA)

VHDL assertions are statements used to verify conditions or assumptions during simulation and synthesis. Normal VHDL assertions check signal values or system states at runtime, issuing messages or halting simulation upon violation of predefined constraints. UVVM Assertions is a collection of assertions that can be used inside the UVVM logging and methodology framework. Like pure VHDL assertions, UVVM assertions consist of a condition to check, a message to log if the condition fails, and a severity level to indicate the importance of the failure, and other features such as enable signal, positive acknowledge, and more. The simplest of them: assert_value can be used to log a simple VHDL assert statement within the UVVM log.

These assertions are designed to catch some of the fundamental features typically targeted by assertion libraries (such as PSL or OVL), and have been largely influenced by the assertions found in Accellera Standard OVL V2, and a substitution table can be found at the very bottom of this page.

Usage examples:

Simplest usage

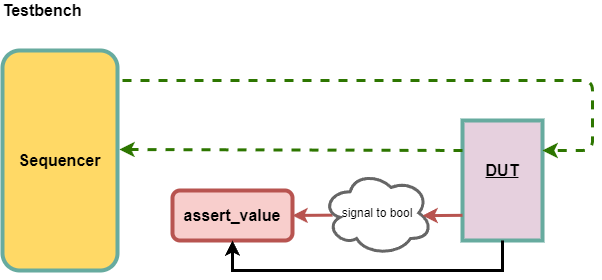

Figure 1 - assert_value instantiated in the TB arch body

Figure 1 shows the simplest usage of UVVM assertions, which can replace normal VHDL assertions is to use assert_value with boolean entries. Below is a code example of an UVVM testbench where assert_value is instantiated with some logic to assert a signal property of the DUT, as well as the pure VHDL code to do the same.

Here we control the assertion from the DUT, using the count_valid signal as the enable signal. In this example the assertion is checking that the count signal is never equal to 13, by using an auxiliary signal assert_count_not_13.

library IEEE;
use IEEE.std_logic_1164.all;
use IEEE.numeric_std.all;

library uvvm_util;
context uvvm_util.uvvm_util_context;

entity simple_assertion_tb is
end entity simple_assertion_tb;

architecture func of simple_assertion_tb is
    constant C_CLK_PERIOD : time := 10 ns;

    signal clk         : std_logic := '0';
    signal rst         : std_logic := '0';
    signal count       : integer := 0;
    signal count_valid : std_logic := '0';

    signal assert_count_not_13 : boolean := false;
begin

-----------------------------------------------------------------------------
-- The simplest clock generator
-----------------------------------------------------------------------------
clk <= not clk after C_CLK_PERIOD / 2;

-----------------------------------------------------------------------------
-- Instantiate DUT
-----------------------------------------------------------------------------
i_counter : entity work.lucky_counter
    port map(
    clk         => clk,
    rst         => rst,
    count       => count, -- will always skip 13 as this is an unlucky number
    count_valid => count_valid -- we will let the DUT control the assertion enable
    );

-----------------------------------------------------------------------------
-- Assertions
-----------------------------------------------------------------------------
p_assert_pure_vhdl : process
begin
    wait until rising_edge(clk);
    if count_valid = '1' then
    -- Check if the count is not equal to 13
    assert count /= 13
        report "Pure VHDL assertion failed: count should not be 13"
        severity error;
    end if;
end process p_assert_pure_vhdl;

assert_count_not_13 <= count /= 13;
p_uvvm_assertion : assert_value(clk, count_valid, assert_count_not_13, true, "count must never be 13");

p_main : process
begin
    log(ID_LOG_HDR, "STARTING SIMULATION", C_SCOPE);

    rst <= '1';  -- Assert reset
    wait for 10*C_CLK_PERIOD;  -- Wait for 10 clock cycles
    rst <= '0';  -- Deassert reset
    wait for 200*C_CLK_PERIOD;

    log(ID_LOG_HDR, "SIMULATION COMPLETED", C_SCOPE);

    -- Finish the simulation
    std.env.stop;
    wait;                               -- to stop completely

end process p_main;

end func;

Normal usage

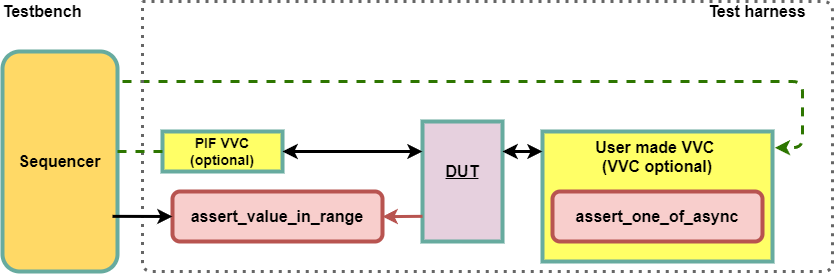

Figure 2 - Signal Assertions Placement in Test-Harness (with VVCs)

Figure 2 shows a typical usage of UVVM assertions inside a test-harness, with VCCs controlling the DUT. The assertion in the test-harness is controlled by both the testbench, and the DUT using an auxiliary signal assertion_ena_combined, The user made VCCs is shown to contain an assertion (assert_one_of_async) placed concurrently inside it to check an assumption about the VCC output. The code example below matches the figure, but without the optional VVCs. In this example the assertion (assert_value_in_range), placed concurrently in the test-harness is checking that the output of a simple counter is always within a certain range (0-250).

entity tb is
end entity tb;

architecture sim of tb is
    -- signals
begin

    i_test_harness : entity work.uvvm_assertion_demo_th
        port map(
            assert_value_in_range_ena => assert_value_in_range_ena,
            clock_ena => clock_ena
        );

    -- Test sequencer
    p_main : process
    begin
        -- continuously monitor the DUT output is in range (some time to allow for rst to be done)
        assert_value_in_range_ena <= '0';
        wait for 10 ns;
        assert_value_in_range_ena <= '1';
    end process p_main;
end architecture rtl;

entity th is
  port (
    assert_value_in_range_ena : in std_logic;
    clock_ena                 : in std_logic;
  );
end entity th;

architecture sim of th is
    signal dut_counter_value: integer;
    signal dut_counter_valid: std_logic := '0';
    signal assertion_ena_combined: std_logic := '0';
begin
    -----------------------------------------------------------------------------
    -- DUT Instantiation - Simple Counter
    -----------------------------------------------------------------------------
    i_simple_counter : simple_counter
        port map(
            clk            => clk,
            enable         => '1',
            counter_val    => dut_counter_value,
            counter_valid  => dut_counter_valid
        );

    -----------------------------------------------------------------------------
    -- Assertion - Check counter value stays within range
    -----------------------------------------------------------------------------
    assertion_ena_combined <= assert_value_in_range_ena and dut_counter_valid;
    assert_value_in_range(
        clk             => clk,
        ena             => assertion_ena_combined,
        tracked_value   => dut_counter_value,
        lower_limit     => 0,     -- Minimum valid counter value
        upper_limit     => 250,   -- Maximum valid counter value (set by requirement)
        msg             => "DUT counter value valid range (0-250)",
        alert_level     => ERROR
    );

    -----------------------------------------------------------------------------
    -- Clock Generator
    -----------------------------------------------------------------------------
    clock_generator(clk, clock_ena, C_CLK_PERIOD, "DUT TB clock");

end architecture sim;

Note

More examples of uvvm assertions can be found in the uvvm_assertions_demo ( _tb.vhd / _th.vhd ) testbench and test-harness in the uvvm_util/tb/ directory.

Basic concepts:

clocked and async

Most UVVM assertions are provided in two variants: a clocked version, which checks on the rising edge of a clock, and a non-clocked version, which checks whenever any signal parameter has an ’event. (assuming the enable signal is active). Note that for the clocked assertions, the tracked_value will be checked at the same delta cycle as the rising edge of the clock, meaning that any changes to the tracked signal after this will be checked on the next rising edge of the clock.

configuring the assertion

All UVVM assertions have parameters defined as constants that can be used to configure the behavior of the assertion. These configuration parameters will be locked to their set value when the assertion is activated by the enable signal. If the configuration parameters need to be changed, the enable signal must be set low before changing the parameters to the desired value.

pos_ack and pos_ack_kind

All UVVM assertions will log on the msg_id := ID_UVVM_ASSERTION (can be changed by setting the msg_id constant in the procedure call) A positive acknowledgment will be logged when the assertion is sure that the assertion has passed. The default behavior is to only log the first time. By setting pos_ack_kind <= EVERY, the positive acknowledgment will come each time.

Assertions

All UVVM assertions have some common traits which are useful to know before using them. All assertions require that the enable signal is set to ‘1’ (called active) for the assertion to be considered. If the assertion fails, UVVM will raise an alert with the severity set by the alert_level parameter, and as stated above, using the non-clocked version of the assertion will consider the assertion on any signal change. Most of this behavioral info is also written on each assertion procedure header.

Note

Optional parameters “[]” in port map mean the parameter is optional

Legend bool=boolean, sl=std_logic, slv=std_logic_vector, u=unsigned, s=signed, int=integer, exp=expected, ena=enable

Basic assertions

assert_value()

The assert_value() assertions will check if the signal given in the tracked_value is equal to exp_value. If the assertion fails, UVVM will raise an alert with the severity alert_level. For assert_value() using clk(sl), the check is done at the rising edge of the clock, and for the non-clocked version, the check is done on any signal change. (both assertions require the enable to be active). The input map is:

assert_value([clk(sl)], ena(sl), tracked_value(bool),             exp_value(bool),             msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(slv),              exp_value(slv),              msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(sl),               exp_value(sl),               msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(t_slv_array),      exp_value(t_slv_array),      msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(t_unsigned_array), exp_value(t_unsigned_array), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(t_signed_array),   exp_value(t_signed_array),   msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(u),                exp_value(u),                msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(s),                exp_value(s),                msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(int),              exp_value(int),              msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(real),             exp_value(real),             msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value([clk(sl)], ena(sl), tracked_value(time),             exp_value(time),             msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal. When used, the check will only be performed on rising edge, when omitted any signal ‘event will activate the assertion
signal	ena	in	std_logic	Enable signal. must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression value, alert when not equal to exp_value on check
constant	exp_value	in	see overloads	Expected value for the tracked_value (default: bool:true, other types has no default)
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR.
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

assert_value(clk, '1', dut_output, '1', "DUT signal must be '1' at rising edge of clk:200MHz");

assert_value(
clk             => clk,
ena             => assertion_enable,
tracked_value   => dut_output,
exp_value       => '1',
msg             => "DUT signal must be '1' at rising edge of clk:200MHz"
);

Note

If you wish to use the assert_value to assert if a signal is never equal to a certain value, you must use the assert_value(bool) variant and supply the tracked_value as an auxiliary boolean signal with the value of tracked_value /= exp_value. (see simple example at the top of this page)

assert_one_of()

The assert_one_of() assertion will check if the signal given in the assert_one_of is equal to any of the values in allowed_values. If the assertion fails, UVVM will raise an alert with the severity alert_level. For assert_one_of() using clk(sl), the check is done at the rising edge of the clock, and for the non-clocked version, the check is done on any signal change. (both assertions require the enable to be active). The input map is:

assert_one_of([clk(sl)], ena(sl), tracked_value(slv),  allowed_values(t_slv_array),      msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_one_of([clk(sl)], ena(sl), tracked_value(sl),   allowed_values(slv),              msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_one_of([clk(sl)], ena(sl), tracked_value(u),    allowed_values(t_unsigned_array), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_one_of([clk(sl)], ena(sl), tracked_value(s),    allowed_values(t_signed_array),   msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_one_of([clk(sl)], ena(sl), tracked_value(int),  allowed_values(t_integer_array),  msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_one_of([clk(sl)], ena(sl), tracked_value(real), allowed_values(real_vector),      msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_one_of([clk(sl)], ena(sl), tracked_value(time), allowed_values(time_vector),      msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal. When used, the check will only be performed on rising edge, when omitted any signal ‘event will activate the assertion
signal	ena	in	std_logic	Enable signal. must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression value, alert when not equal to one of the allowed_values on clock rising edge
constant	allowed_values	in	see overloads	A set of allowed values in the tracked_value
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that "dut_output" is always within valid digital values (L, H, 0, 1)
-- avoiding non-valid logic states (X, Z, U, W, -) in the std_logic signal.
-- The assertion will be tested on the rising edge of clk:200MHz
assert_one_of(
clk             => clk,
ena             => enable,
tracked_value   => dut_output,
allowed_values  => "LH01",
alert_level     => ERROR,
msg             => "Only DUT signal std_logic values constrained to: L, H, 0, and 1 are allowed at clk:200MHz"
);

assert_one_of(clk, assertion_ena, dut_output, "LH01", "Only DUT signal std_logic values constrained to: L, H, 0, and 1 are allowed at clk:200MHz");

assert_one_hot()

The assert_one_hot() assertion will check if the signal given in the tracked_value is a one-hot signal (e.i that only one bit is set to ‘1’ and all others are ‘0’). If the assertion fails, UVVM will raise an alert with the severity alert_level. For the assert_one_hot() using clk(sl), the check is done at the rising edge of the clock, and for the non-clocked version, the check is done on any signal change. (both assertions require the enable to be active).

NOTE: this assertion may be used to also cover all zeros as a one-hot signal by setting accept_all_zero to ALL_ZERO_ALLOWED. The input map is:

assert_one_hot([clk(sl)], ena(sl), tracked_value(slv), msg, [alert_level, [accept_all_zero, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal. When used, the check will only be performed on rising edge, when omitted any signal ‘event will activate the assertion
signal	ena	in	std_logic	Enable signal. must be ‘1’ for the assertion to be considered
signal	tracked_value	in	std_logic_vector	Test expression value, alert when not a one hot signal
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	accept_all_zero	in	t_accept_all_zeros	Accept all zeros as a one-hot signal. Default is ALL_ZERO_NOT_ALLOWED
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the positive acknowledge should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that "dut_output" is a one-hot signal at the rising edge of clk:200MHz
assert_one_hot(
clk             => clk,
ena             => assertion_enable,
tracked_value   => dut_output,
msg             => "DUT signal must be a one-hot signal at rising edge of clk:200MHz"
alert_level     => WARNING,
accept_all_zero => ALL_ZERO_ALLOWED,  -- Also accept all zeros as valid state
);

assert_one_hot(clk, assertion_ena, dut_output, "DUT signal must be a one-hot signal at rising edge of clk:200MHz");

assert_value_in_range()

The assert_value_in_range() assertion will check if the signal given in the tracked_value is within the range (inclusive) of lower_limit and upper_limit. If the assertion fails, UVVM will raise an alert with the severity alert_level. For assert_value_in_range() using clk(sl), the check is done at the rising edge of the clock, and for the non-clocked version, the check is done on any signal change. (both assertions require the enable to be active). The input map is:

assert_value_in_range([clk(sl)], ena(sl), tracked_value(u),    lower_limit(u),    upper_limit(u),    msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value_in_range([clk(sl)], ena(sl), tracked_value(s),    lower_limit(s),    upper_limit(s),    msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value_in_range([clk(sl)], ena(sl), tracked_value(int),  lower_limit(int),  upper_limit(int),  msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value_in_range([clk(sl)], ena(sl), tracked_value(real), lower_limit(real), upper_limit(real), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value_in_range([clk(sl)], ena(sl), tracked_value(time), lower_limit(time), upper_limit(time), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal. When used, the check will only be performed on rising edge, when omitted any signal ‘event will activate the assertion
signal	ena	in	std_logic	Enable signal. must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression value, alert when not in range
constant	lower_limit	in	see overloads	Lower bound of the allowed range (inclusive)
constant	upper_limit	in	see overloads	Upper bound of the allowed range (inclusive)
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that the motor PWM duty cycle always remains within the safe operating range
-- at the rising edge of clk:100MHz
assert_value_in_range(
clk             => clk_100mhz,
ena             => tb_asserts_enable,
tracked_value   => motor_pwm_duty_cycle,
-- ** CONFIG **
lower_limit     => 5,    -- Min 5% duty cycle to ensure motor startup
upper_limit     => 95,   -- Max 95% duty cycle to prevent overheating
alert_level     => TB_ERROR,
msg             => "Motor PWM duty cycle must be in operating range (5-95%) @ clk:100MHz"
);

assert_value_in_range(clk_100mhz, assertion_ena, motor_pwm_duty_cycle, 5, 95, "Motor PWM duty cycle must be in operating range (5-95%) @ clk:100MHz");

assert_shift_one_from_left()

The assert_shift_one_from_left() assertion will verify that the tracked_value signal follows the srl pattern from left to right. If the assertion fails, UVVM will raise an alert with the severity alert_level. The input map is:

assert_shift_one_from_left(clk(sl), ena(sl), tracked_value(slv), [necessary_condition], msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

When enabled, the assertion checks that a ‘1’ shifts from the leftmost bit to the rightmost bit, one position at each clock cycle. The assertion will give out an positive acknowledgement on the final bit (rightmost) being set to ‘1’. An alert will be raised if the sequence is broken based on the necessary_condition configuration.

When using necessary_condition set as ANY_BIT_ALERT or LAST_BIT_ALERT, the assertion will allow for pipelined sequences, meaning that any new leftmost ‘1’ will start a new sequence, being tracked independently of the previous sequence. If the necessary_condition is set as ANY_BIT_ALERT_NO_PIPE or LAST_BIT_ALERT_NO_PIPE, the assertion will not allow for pipelined sequences, and any new leftmost ‘1’ while in an ongoing sequence will be ignored. If the sequence is broken, the assertion will drop all ongoing sequences, and give out an alert based on which necessary_condition is set, and which bit broke the sequence.

Example of sequences:

-- NOTE: "b" is a placeholder for any bit (0 or 1)
1bbb -> b1bb -> bb1b -> bbb1 -- a sequence of 4 bits with no errors
1bbb -> 11bb -> b11b -> bb11 -> bbb1 -- two sequences of 4 bits with no errors (pipelined)

-- Examples of sequences with errors:
1bbb -> b1bb -> bb1b -> bbb0 -- All necessary_conditions will give an alert
1bbb -> b1bb -> bb0b -> bbb0 -- Only necessary_condition ANY_BIT_ALERT and ANY_BIT_ALERT_NO_PIPE will give an alert
1bbb -> 11bb -> b11b -> bb11 -> bbb0 -- (pipelined) necessary_condition ANY_BIT_ALERT and LAST_BIT_ALERT will give an alert
1bbb -> 11bb -> b11b -> bb01 -> bbb1 -- (pipelined) Only necessary_condition ANY_BIT_ALERT will give an alert

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	std_logic_vector	Test expression value, will alert if the shift pattern from left to right is broken
constant	necessary_condition	in	t_necessary_condition	Sets when to alert. Default is ANY_BIT_ALERT
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- Pipeline Stage Valid Signal Tracking
-- This assertion monitors the "valid" signal as it propagates through a 4-stage
-- image processing pipeline (each bit represents a valid flag in one stage)
assert_shift_one_from_left(
clk                 => pixel_clock,
ena                 => pipeline_active,       -- Enable signal for the pipeline
tracked_value       => pipeline_stage_valid,  -- 4-bit signal, one per pipeline stage
necessary_condition => ANY_BIT_ALERT,         -- Alert on any stage that drops the valid flag
msg                 => "Image processing pipeline stage valid signal must shift one-hot from left to right",
alert_level         => WARNING,
);

assert_shift_one_from_left(clk, pipeline_active, pipeline_stage_valid, ANY_BIT_ALERT, "Image processing pipeline stage valid signal must shift one-hot from left to right", WARNING);

window assertions

Window assertions are a collection of assertions to check signal properties within a defined window, either set by a number of cycles after a trigger signal or between two trigger signals. The window assertions which exist for both cycle-bound and end-trigger bound are:

Name	Bound by	asserts
assert_value_from_min_to_max_cycles_after_trigger	Cycles	Checks that the tracked_value signal is equal to exp_value on each rising edge in window.
assert_change_to_value_from_min_to_max_cycles_after_trigger	Cycles	Checks that the tracked_value signal is equal to a non-exp_value at any rising edge in window, and then later is equal to exp_value on a rising edge in window.
assert_change_from_min_to_max_cycles_after_trigger	Cycles	Checks that the tracked_value has two different values on two rising edges in window.
assert_stable_from_min_to_max_cycles_after_trigger	Cycles	Checks that the tracked_value signal is stable (the same value) on all rising edges in window.
assert_value_from_start_to_end_trigger	Trigger	Checks that the tracked_value signal is equal to exp_value on each rising edge in window.
assert_change_to_value_from_start_to_end_trigger	Trigger	Checks that the tracked_value signal is equal to a non-exp_value at any rising edge in window, and then later is equal to exp_value on a rising edge in window.
assert_change_from_start_to_end_trigger	Trigger	Checks that the tracked_value has two different values on two rising edges in window.
assert_stable_from_start_to_end_trigger	Trigger	Checks that the tracked_value signal is stable (the same value) on all rising edges in window.

Note

• The number of cycles is 0 at the first rising_edge(clk) where trigger = ‘1’.

• Setting min_cycles = 0 and max_cycles = 0 will result in the first and last check on the first rising_edge(clk) where trigger = ‘1’.

• After the first assertion OK event, the assertion will be dropped and give a positive acknowledge (unless using _stable_ where the entire window must be checked).

• The number of cycles and start/end triggers are inclusive, with the exception of the “change” assertions not considering a change on the -1 to 0 cycle transition (as the tracked_value is first stored on trigger rising edge).

Hint

All window assertions can be pipelined (if trigger/start_trigger is ‘1’ while another window assertion is in progress). The assertion will check each window independently, giving an positive acknowledge or alert for each pipe independently.

toggling ena <= ‘0’ will stop the assertion from checking all pipes and resets all internal saved values (as with the other assertions).

Pipe numbering start on zero at the first trigger, and will be printed out as pipe: (N) for all non zero pipes in the assertion log message.

Example:

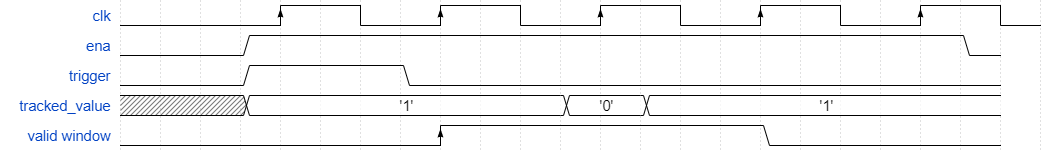

Figure 3 - Simple example of assert_change_to_value_from_min_to_max_cycles_after_trigger

Figure 3 shows a simple example of assert_change_to_value_from_min_to_max_cycles_after_trigger using min_cycles = 1 and max_cycles = 3, where exp_value = ‘1’. Note-1: That the number 1-cycle (0 on the trigger rising edge) rising edge is the first time tracked_value is considered, and the 3-cycle rising edge is the last time tracked_value is considered. Note-2: The “signal” valid window is used to illustrate when the window is active in the assertion, and is not a signal in the assertion itself.

assert_value_from_min_to_max_cycles_after_trigger()

The assert_value_from_min_to_max_cycles_after_trigger assertion checks if the tracked_value signal is equal to exp_value (on rising edge of clock) within a range of cycles after the trigger signal is ‘1’. The range is defined by the min_cycles and max_cycles constants. NOTE: If the min_cycles is set to 0, the assertion will check if the tracked_value signal is equal to exp_value at the same cycle as the trigger signal is ‘1’.

assert_value_from_min_to_max_cycles_after_trigger(clk(sl), ena(sl), tracked_value(sl),  trigger(sl), min_cycles(int), max_cycles(int), exp_value(sl),  msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value_from_min_to_max_cycles_after_trigger(clk(sl), ena(sl), tracked_value(slv), trigger(sl), min_cycles(int), max_cycles(int), exp_value(slv), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression to assert
signal	trigger	in	std_logic	Start event signal
constant	min_cycles	in	integer	Minimum number of cycles after trigger signal to check (inclusive)
constant	max_cycles	in	integer	Maximum number of cycles after trigger signal to check (inclusive)
constant	exp_value	in	see overloads	Expected value of the tracked signal to check for
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that the data_valid_flag remains high for the entire duration of a data transfer
-- (from cycle 0 when transfer starts through cycle 3, covering all 4 cycles of the transfer window)
assert_value_from_min_to_max_cycles_after_trigger(
clk             => system_clk,
ena             => interface_active,
tracked_value   => data_valid_flag,
trigger         => start_transfer,
min_cycles      => 0,     -- Start checking immediately when transfer begins
max_cycles      => 3,     -- Check through the entire 4-cycle transfer window (cycles 0,1,2,3)
exp_value       => '1',   -- Data valid must remain high throughout the entire transfer
msg             => "Data valid flag must remain asserted for the entire 4-cycle transfer window"
alert_level     => TB_ERROR,
);

assert_value_from_min_to_max_cycles_after_trigger(clk, assertion_ena, data_valid_flag, start_transfer, 0, 3, '1', "Data valid flag must remain asserted for the entire 4-cycle transfer window");

assert_change_to_value_from_min_to_max_cycles_after_trigger()

The assert_change_to_value_from_min_to_max_cycles_after_trigger assertion checks if the tracked_value signal is different from exp_value at any rising edge within the window, and then later changes to exp_value on a subsequent rising edge within the window. The range is defined by the min_cycles and max_cycles constants. If the assertion fails, UVVM will raise an alert with the severity alert_level. The input map is:

assert_change_to_value_from_min_to_max_cycles_after_trigger(clk(sl), ena(sl), tracked_value(sl),  trigger(sl), min_cycles(int), max_cycles(int), exp_value(sl),  msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_change_to_value_from_min_to_max_cycles_after_trigger(clk(sl), ena(sl), tracked_value(slv), trigger(sl), min_cycles(int), max_cycles(int), exp_value(slv), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression to assert, must change to exp_value within window
signal	trigger	in	std_logic	Start event signal
constant	min_cycles	in	integer	Minimum number of cycles after trigger signal to check (inclusive)
constant	max_cycles	in	integer	Maximum number of cycles after trigger signal to check (inclusive)
constant	exp_value	in	see overloads	Expected value the tracked signal must change to
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that the acknowledge signal changes to high within 2-5 cycles after request
assert_change_to_value_from_min_to_max_cycles_after_trigger(
clk             => clk,
ena             => protocol_active,
tracked_value   => acknowledge_signal,
trigger         => request_signal,
min_cycles      => 2,     -- Allow 2 cycles minimum response time
max_cycles      => 5,     -- Require response within 5 cycles maximum
exp_value       => '1',   -- Expected value is acknowledge high
msg             => "Acknowledge signal must change to active within required timing window (2-5 cycles) after request"
alert_level     => ERROR,
);

assert_change_to_value_from_min_to_max_cycles_after_trigger(clk, assertion_ena, acknowledge_signal, request_signal, 2, 5, '1', "Acknowledge signal must change to active within required timing window (2-5 cycles) after request");

assert_change_from_min_to_max_cycles_after_trigger()

The assert_change_from_min_to_max_cycles_after_trigger assertion checks if the tracked_value signal is two different values on two rising edges within the window. Note: This assertion requires the max_cycles to be greater than min_cycles to allow for at least one change to be detected (window consisting of at least two rising edges). If the assertion fails, UVVM will raise an alert with the severity alert_level. The input map is:

assert_change_from_min_to_max_cycles_after_trigger(clk(sl), ena(sl), tracked_value(sl),  trigger(sl), min_cycles(int), max_cycles(int), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_change_from_min_to_max_cycles_after_trigger(clk(sl), ena(sl), tracked_value(slv), trigger(sl), min_cycles(int), max_cycles(int), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression to assert, must change within window
signal	trigger	in	std_logic	Start event signal
constant	min_cycles	in	integer	Minimum number of cycles after trigger signal to check (inclusive)
constant	max_cycles	in	integer	Maximum number of cycles after trigger signal to check (inclusive)
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that the interrupt line toggles (changes state) within a window
-- after a peripheral operation starts, indicating the operation completed
assert_change_from_min_to_max_cycles_after_trigger(
clk             => system_clk,
ena             => tb_assertions_enabled,
tracked_value   => interrupt_line,
trigger         => start_peripheral_operation,
min_cycles      => 5,     -- Earliest expected response (operation takes minimum 5 cycles)
max_cycles      => 20,    -- Latest allowed response (operation timeout at 20 cycles)
msg             => "Peripheral interrupt line must toggle within expected operation window (5-20 cycles)",
alert_level     => WARNING
);

assert_change_from_min_to_max_cycles_after_trigger(clk, tb_assertions_enabled, interrupt_line, start_peripheral_operation, 5, 20, "Peripheral interrupt line must toggle within expected operation window (5-20 cycles)", WARNING);

assert_stable_from_min_to_max_cycles_after_trigger()

The assert_stable_from_min_to_max_cycles_after_trigger assertion checks if the tracked_value signal is the same value on all rising edges of the clk signal within the window. Note: Setting min_cycles = 0 and max_cycles = 0 will result in the assertion to always pass (as the value is always the same value on “all” rising edges of the clk signal in the window). The input map is:

assert_stable_from_min_to_max_cycles_after_trigger(clk(sl), ena(sl), tracked_value(sl),  trigger(sl), min_cycles(int), max_cycles(int), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_stable_from_min_to_max_cycles_after_trigger(clk(sl), ena(sl), tracked_value(slv), trigger(sl), min_cycles(int), max_cycles(int), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression value, must remain stable throughout the window
signal	trigger	in	std_logic	Start event signal
constant	min_cycles	in	integer	Minimum number of cycles after trigger signal to check (inclusive)
constant	max_cycles	in	integer	Maximum number of cycles after trigger signal to check (inclusive)
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that the memory data bus remains stable during a read operation
-- after the data_ready signal is asserted until the transaction completes
assert_stable_from_min_to_max_cycles_after_trigger(
clk             => system_clk,
ena             => memory_interface_active,
tracked_value   => memory_data_bus,
trigger         => data_ready,
min_cycles      => 0,     -- Start checking immediately when data is ready
max_cycles      => 3,     -- Check stability for 4 cycles (cycles 0,1,2,3)
msg             => "Memory data bus must remain stable after data_ready until transfer completes"
alert_level     => ERROR,
);

assert_stable_from_min_to_max_cycles_after_trigger(clk, memory_interface_active, memory_data_bus, data_ready, 0, 3, "Memory data bus must remain stable after data_ready until transfer completes");

assert_value_from_start_to_end_trigger()

The assert_value_from_start_to_end_trigger assertion checks if the tracked_value signal is equal to exp_value on each rising edge of the clk signal in the window defined by the start and end trigger signals. If the assertion fails, UVVM will raise an alert with the severity alert_level. The input map is:

assert_value_from_start_to_end_trigger(clk(sl), ena(sl), tracked_value(sl),  start_trigger(sl), end_trigger(sl), exp_value(sl),  msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_value_from_start_to_end_trigger(clk(sl), ena(sl), tracked_value(slv), start_trigger(sl), end_trigger(sl), exp_value(slv), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression value, must equal exp_value between the trigger signals
signal	start_trigger	in	std_logic	Start event signal that begins the assertion window
signal	end_trigger	in	std_logic	End event signal that closes the assertion window
constant	exp_value	in	see overloads	Expected value the tracked signal must maintain between triggers
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default value is ERROR
constant	scope	in	string	Scope of the assertion. Default value is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default value is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default value is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default value is shared_msg_id_panel

Example of usage:

-- This will check that the bus data remains valid (equal to '1') during an entire
-- bus transaction from the request signal until the acknowledge signal
assert_value_from_start_to_end_trigger(
clk             => system_clk,
ena             => tb_assertions_enabled,
tracked_value   => data_valid,
start_trigger   => bus_request,
end_trigger     => bus_acknowledge,
exp_value       => '1',   -- Data must remain valid (1) during entire transaction
msg             => "Data valid signal must remain high during entire bus transaction (from request to acknowledge)"
alert_level     => ERROR,
);

assert_value_from_start_to_end_trigger(clk, tb_assertions_enabled, data_valid, bus_request, bus_acknowledge, '1', "Data valid signal must remain high during entire bus transaction (from request to acknowledge)");

assert_change_to_value_from_start_to_end_trigger()

The assert_change_to_value_from_start_to_end_trigger assertion checks if the tracked_value is a different value than exp_value at any rising edge within the window, and then later changes to exp_value on a subsequent rising edge within the window. Note: end_trigger must come at least one clock cycle after start_trigger to allow for at least one change to be detected (window consisting of at least two rising edges). If the assertion fails, UVVM will raise an alert with the severity alert_level. The input map is:

assert_change_to_value_from_start_to_end_trigger(clk(sl), ena(sl), tracked_value(sl),  start_trigger(sl), end_trigger(sl), exp_value(sl),  msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_change_to_value_from_start_to_end_trigger(clk(sl), ena(sl), tracked_value(slv), start_trigger(sl), end_trigger(sl), exp_value(slv), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression value, must change to exp_value between trigger signals
signal	start_trigger	in	std_logic	Start event signal that begins the assertion window
signal	end_trigger	in	std_logic	End event signal that closes the assertion window
constant	exp_value	in	see overloads	Expected value the tracked signal must change to between triggers
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that the acknowledge signal changes to high between request and completion
assert_change_to_value_from_start_to_end_trigger(
clk             => system_clk,
ena             => tb_assertions_enabled,
tracked_value   => acknowledge_signal,
start_trigger   => request_signal,
end_trigger     => operation_complete,
exp_value       => '1',   -- Expected value is acknowledge high
msg             => "Acknowledge signal must change to active during protocol transaction",
alert_level     => TB_ERROR
);

assert_change_to_value_from_start_to_end_trigger(clk, tb_assertions_enabled, acknowledge_signal, request_signal, operation_complete, '1', "Acknowledge signal must change to active during protocol transaction", TB_ERROR);

assert_change_from_start_to_end_trigger()

The assert_change_from_start_to_end_trigger assertion checks if the tracked_value signal has two different values on two rising edges within the window defined by the start and end trigger signals. Note: end_trigger must come at least one clock cycle after start_trigger to allow for at least one change to be detected (window consisting of at least two rising edges). If the assertion fails, UVVM will raise an alert with the severity alert_level. The input map is:

assert_change_from_start_to_end_trigger(clk(sl), ena(sl), tracked_value(sl),  start_trigger(sl), end_trigger(sl), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_change_from_start_to_end_trigger(clk(sl), ena(sl), tracked_value(slv), start_trigger(sl), end_trigger(sl), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression value, must change at least once between trigger signals
signal	start_trigger	in	std_logic	Start event signal that begins the assertion window
signal	end_trigger	in	std_logic	End event signal that closes the assertion window
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that the response signal changes state at least once between
-- the start of a command and its completion
assert_change_from_start_to_end_trigger(
clk             => system_clk,
ena             => device_active,
tracked_value   => device_response,
start_trigger   => command_start,
end_trigger     => command_complete,
msg             => "Device must produce a response signal transition during command execution",
alert_level     => ERROR
);

assert_change_from_start_to_end_trigger(clk, device_active, device_response, command_start, command_complete, "Device must produce a response signal transition during command execution");

assert_stable_from_start_to_end_trigger()

The assert_stable_from_start_to_end_trigger assertion checks if the tracked_value signal is the same value on all rising edges of the clk signal in the window defined by the start and end trigger signals. If the assertion fails, UVVM will raise an alert with the severity alert_level. The input map is:

assert_stable_from_start_to_end_trigger(clk(sl), ena(sl), tracked_value(sl),  start_trigger(sl), end_trigger(sl), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])
assert_stable_from_start_to_end_trigger(clk(sl), ena(sl), tracked_value(slv), start_trigger(sl), end_trigger(sl), msg, [alert_level, [scope, [pos_ack_kind, [msg_id, [msg_id_panel]]]]])

Object	Name	Dir	Type	Description
signal	clk	in	std_logic	Clock signal
signal	ena	in	std_logic	Enable signal, must be ‘1’ for the assertion to be considered
signal	tracked_value	in	see overloads	Test expression value, must remain stable between trigger signals
signal	start_trigger	in	std_logic	Start event signal that begins the assertion window
signal	end_trigger	in	std_logic	End event signal that closes the assertion window
constant	msg	in	string	Assertion log message
constant	alert_level	in	t_alert_level	Sets the severity for the alert. Default is ERROR
constant	scope	in	string	Scope of the assertion. Default is C_SCOPE
constant	pos_ack_kind	in	t_pos_ack_kind	How often the pos ack should come. Default is FIRST
constant	msg_id	in	t_msg_id	Message ID for the assertion. Default is ID_UVVM_ASSERTION
constant	msg_id_panel	in	t_msg_id_panel	Message ID panel for the assertion. Default is shared_msg_id_panel

Example of usage:

-- This will check that the configuration register remains stable
-- during the entire data transfer operation (from start to complete signals)
assert_stable_from_start_to_end_trigger(
clk             => system_clk,
ena             => tb_assertions_enabled,
tracked_value   => configuration_register,
start_trigger   => transfer_start,
end_trigger     => transfer_complete,
msg             => "Configuration register must remain stable during the entire transfer operation",
alert_level     => ERROR
);

assert_stable_from_start_to_end_trigger(clk, tb_assertions_enabled, configuration_register, transfer_start, transfer_complete, "Configuration register must remain stable during the entire transfer operation");

Accellera OVL comparison functions

The Accellera Standard OVL V2 has been an inspiration for the UVVM assertion library, therefore under we have a list of the Assertions that are similar to the OVL V2 assertions.

OVL assertion name	UVVM assertion equivalent	Comments
ovl_always & ovl_never	assert_value	The exp_value constant allows checking for a specific tracked_value, covering both OVL assertions
ovl_always_on_edge	assert_value	Same as ovl_always, but checks tracked_value on the rising edge of sampling_event signal
ovl_cycle_sequence	assert_shift_one_from_left	Minor edge case differences; OVL necessary_condition is represented as a constant
ovl_implication	assert_value	OVLs new trigger signal must be covered by an auxiliary signal (c <= a and b)
ovl_never_unknown	assert_one_of	allowed_values constant defines allowed tracked_value values (e.g., “01H”)
ovl_never_unknown_async	assert_one_of	See assert_always_one_of, but use without clk in parameter map
ovl_one_hot	assert_one_hot	Direct equivalent assertion
ovl_range	assert_value_in_range	Name emphasizes checking a value within a range (e.g int)
ovl_zero_one_hot	assert_one_hot	There is a constant accept_all_zero which allows all zeros to count as a one-hot signal
ovl_next	assert_value_from_min_to_max_cycles_after_trigger	Uses min_cycles and max_cycles to define the range of cycles to check
ovl_req_ack_unique	assert_change_to_value_from_min_to_max_cycles_after_trigger	Ensures unique tracked_value = exp_value event within a cycle range after trigger
ovl_time	assert_value_from_min_to_max_cycles_after_trigger	Uses both min_cycles and max_cycles, unlike OVL which only uses max_cycles
ovl_unchange	assert_stable_from_min_to_max_cycles_after_trigger	Ensures tracked_value remains stable over a defined cycle range
ovl_win_change	assert_change_from_start_to_end_trigger	Checks for changes within the start-to-end trigger window
ovl_win_unchange	assert_stable_from_start_to_end_trigger	Ensures stability within the start-to-end trigger window
ovl_window	assert_value_from_start_to_end_trigger	Ensures activation within the start-to-end trigger window
